  項目符號 代理產品>NEXTCHIP>DVR Controller

產品 產品資訊 說明

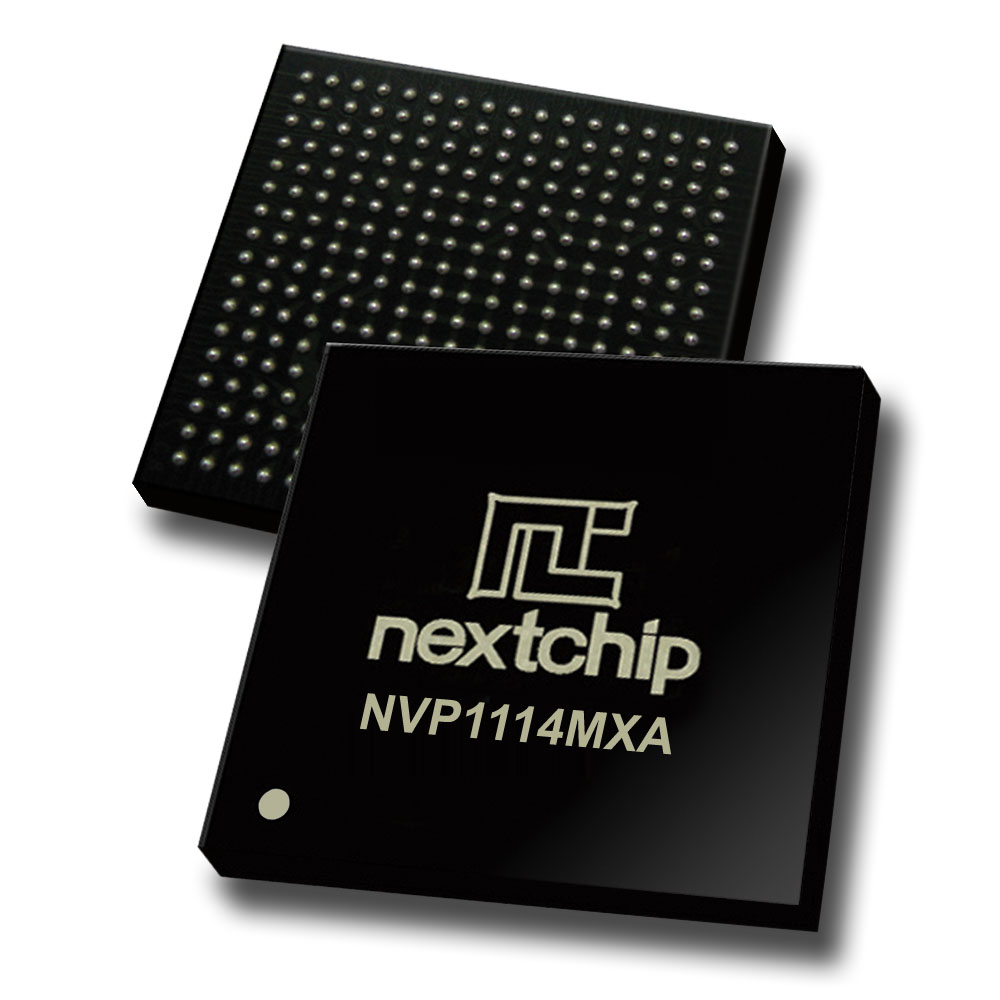

NVP1114MXA
NVP1114MXA

4ch DVR Video Processor with Audio,SDRAM SiP for Low Power Compact Size

The NVP1114MXA is a 4-channel video and audio processor for DVR and security applications. In video path, it accepts 4 analog camera inputs and 4 digital PB inputs, and produces 3 digital outputs and 2analog outputs. It supports digital input/output with 8bit ITU.R BT656 standard. It has high quality of H/V scale function, field/frame freeze, linear zoom, edge enhancement, motion tracing, graphic OSD, mouse interface and overlay functions for LIVE/PB and SPOT display in infinite cascade connection. And it also supports 60-field/sec, 30-frame/sec switching and 120-CIF/sec with time scheduling function for record output up to 16-channel cascade connection. Furthermore,, It also supports...

PDF

  項目符號 最新消息>NEXTCHIP

產品 產品資訊 說明
NVP1114MXA
NEXTCHIP
NVP1114MXA
The NVP1114MXA is a 4-channel video and audio processor for DVR and security applications.In video path, it accepts 4 analog camera inputs and 4 digital PB inputs, and produces 3 digital outputs and 2analog outputs. It supports digital input/output with 8bit ITU.R BT656 standard. It has high quality of H/V scale function, field/frame freeze, linear zoom....,and including 128Mbit SDRAM.
PDF
