  項目符號 代理產品>NEXTCHIP>Mega Pixel CMOS ISP

產品 產品資訊 說明
NVP2430H
NVP2430H/NVP2431H

The brand new megapixel CMOS ISP, NVP2430H/NVP2431H has state-of-the art technology to give the best image quality ever. Especially it is designed to meet the demands of new trend in CCTV market, both Analog HD Camera and cost-effective HD-SDI applications.The main concept of NVP2430H is supporting 1.3M CMOS sensor and output I/F as analog 1280H(CVBS/COMET), AHD 1.0(720p) and HD-SDI 720p. NVP2431H is supporting 1.3M CMOS sensor and output I/F as analog 1280H(CVBS/COMET) and AHD 1.0 (720p).

PDF
NVP2410
NVP2410

The brand new megapixel CMOS ISP, NVP2410, with state-of-the-art imaging technology, will bring you a whole new world of image quality. It is designed for Full-HD quality surveillance cameras like HD-SDI(HDCCTV) and Full-HD IP cameras as well as highend analog cameras. It supports up to 60 fps Full-HD(1920×1080) input and output, second to none technology in video surveillance industry. For further process, it receives 12-bits parallel or various sub-LVDS CMOS sensor inputs. It supports the most frequent used output formats like BT.656, BT.1120, YC 16bits and composite video outputs. It includes groundbreaking and customized functions like N-WDR(Natural Wide Dynamic Range), DIS(Digital Image Stabilization) and Smart NR (motion-adaptive 2D/3D NR). In addition, it offers various customized security camera functions such as High-resolution Digital Zoom, PIP,Electronic PTZ, Day & Night, FRC, Flicker Detection, HLC/BLC, Privacy Polygon Masking, Motion Detection, IRIS control I/F, OSD, enhanced DEFOG, etc.

PDF
NVP2421
NVP2421

The brand new megapixel CMOS ISP, NVP2420/NVP2421 has state-ofthe-art technology to give the best image quality ever. It is designed for Full-HD surveillance cameras like HD-SDI(HDCCTV), Full-HD IP camera and high-end analog camera. It can support up to 1920 X 1080 @ 60 fps input and output. It receives 12-bits parallel or various sub-LVDS CMOS sensor inputs. Output is provided as BT.656, BT.1120, YC 16bits and composite video outputs. NVP2420/NVP2421 includes groundbreaking functions, for example, N-WDR Natural Wide Dynamic Range) and powerful motion-adaptive 2D/3D NR. In addition, it offers various customized security camera functions such as Day & Night, FRC, Flicker Detection, HLC/BLC, Privacy Polygon Masking, Motion Detection, IRIS control I/F, OSD, enhanced DEFOG and so on.

PDF

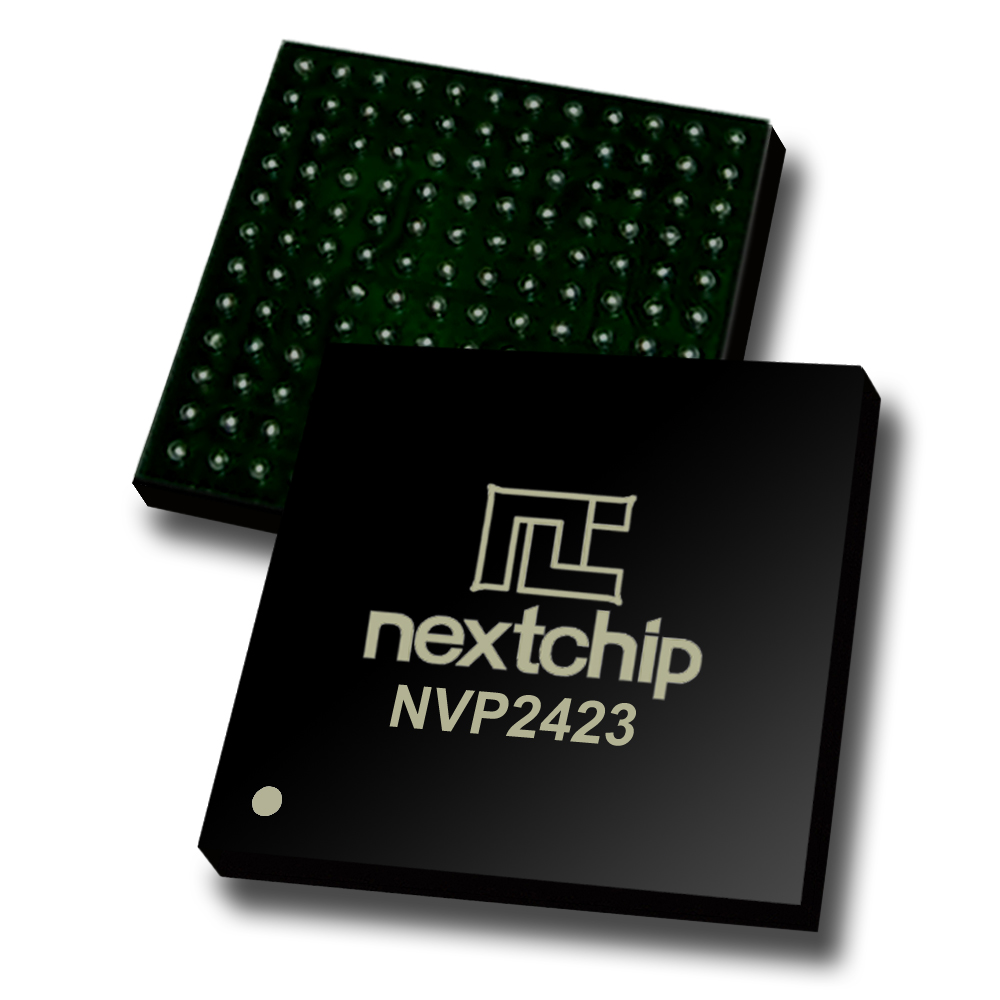

NVP2423
NVP2423

The brand new megapixel CMOS ISP, NVP2423 has state-of-the-art technology to give the best image quality ever. It is designed for HD surveillance cameras like HD-SDI(HDCCTV) and Analog HD camera. It can support to 1.3M CMOS sensor input and output I/F as digital(720p) and analog 960H(CVBS). It receives 4 channel sub-LVDS CMOS sensor inputs. NVP2423 includes groundbreaking functions, for example, N-WDR(Natural Wide Dynamic Range) and powerful motion-adaptive 2D/3D NR. In addition, it offers various customized security camera functions such as Day & Night, FRC, Flicker Detection, HLC/BLC, Privacy Polygon Masking, Motion Detection, IRIS control I/F, OSD, enhanced DEFOG and so on.

PDF

  項目符號 最新消息>NEXTCHIP

產品 產品資訊 說明
NVP2430H
NVP2430H/NVP2431H

The brand new megapixel CMOS ISP, NVP2430H/NVP2431H has state-of-the art technology to give the best image quality ever. Especially it is designed to meet the demands of new trend in CCTV market, both Analog HD Camera and cost-effective HD-SDI applications.The main concept of NVP2430H is supporting 1.3M CMOS sensor and output I/F as analog 1280H(CVBS/COMET), AHD 1.0(720p) and HD-SDI 720p. NVP2431H is supporting 1.3M CMOS sensor and output I/F as analog 1280H(CVBS/COMET) and AHD 1.0 (720p).

PDF
